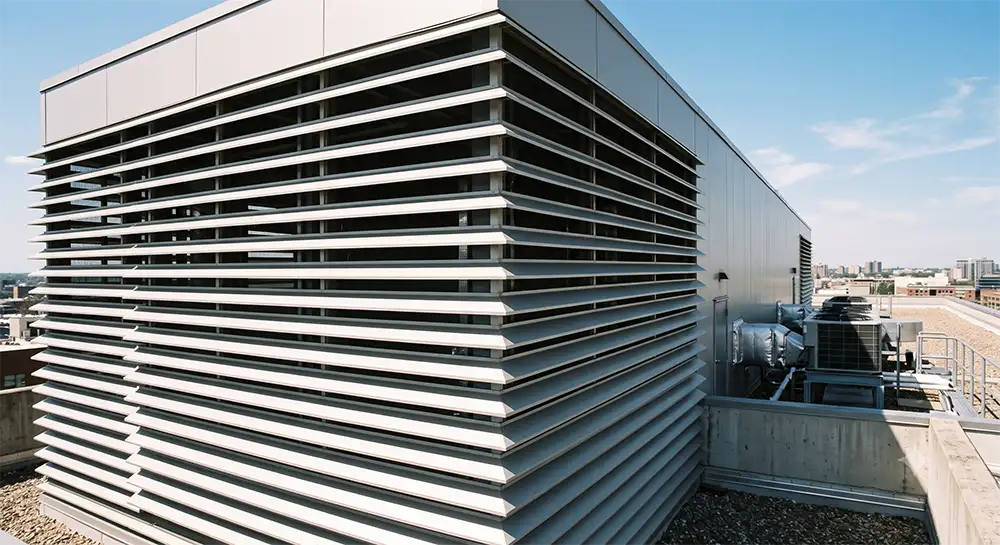

Fixed-Blade Wall Louvers
Get fixed blade louvers spec’d to your wall opening, from standard aluminum designs to drainable and hurricane-rated models. Sized to the free area and weather protection your building calls for.
We source from multiple louver lines on one order. When one line runs long, your order moves to another without stalling the job. One order, one contact, from spec to delivery.
Have questions? Need a louver quote?
Fixed Louver Specifications
Fixed blade louvers are specified by blade angle, blade depth, and free area. Material and rating options set the rest, from standard aluminum to FRP and hurricane-approved models.
| Specification | Range and Options |
|---|---|
| Blade angle | 45° or 60° fixed |
| Blade depth | 2 in to 6 in |
| Free area | 35% to 60%, varies by model and size |
| Material | Extruded aluminum standard, galvanized steel, stainless steel, and FRP available |
| Air and water performance | AMCA 500-L tested for air flow and water penetration |
| Hurricane rating | Miami-Dade approved models available |
| Finish | Mill, clear or color anodized, powder coat |
Free area and size change with each opening, so we match the louver to your required airflow and the wind and rain exposure at the site.
Choose the Right Louver
Match the louver to the exposure at your opening.
- For openings with heavy rain or wind-driven water, spec drainable fixed louvers that channel water out before it reaches the wall.
- For hurricane and high-wind zones, use Miami-Dade approved louvers rated for wind-driven rain and impact.
- For salt air, chemical fumes, or wash-down areas, choose FRP fixed louvers that resist corrosion.
Send us the opening size and site conditions and we spec the louver that fits.
