Schischek Actuators
Schischek actuators are explosion proof actuators for dampers and valves in hazardous areas. Knape Associates is an authorized Schischek distributor. Tell us your area classification and we will confirm the right model for the job.
Have questions? Need a price quote?
Which Schischek Actuator Do You Need?
The line is built in three tiers. Ex models go in Division 1 areas, Red models in Division 2 areas, and In models in ordinary locations.
| Model | Where it goes | Torque | Type |
|---|---|---|---|
| ExMax | Division 1 | 45 to 1,350 in-lbs | Quarter turn, dampers and valves |

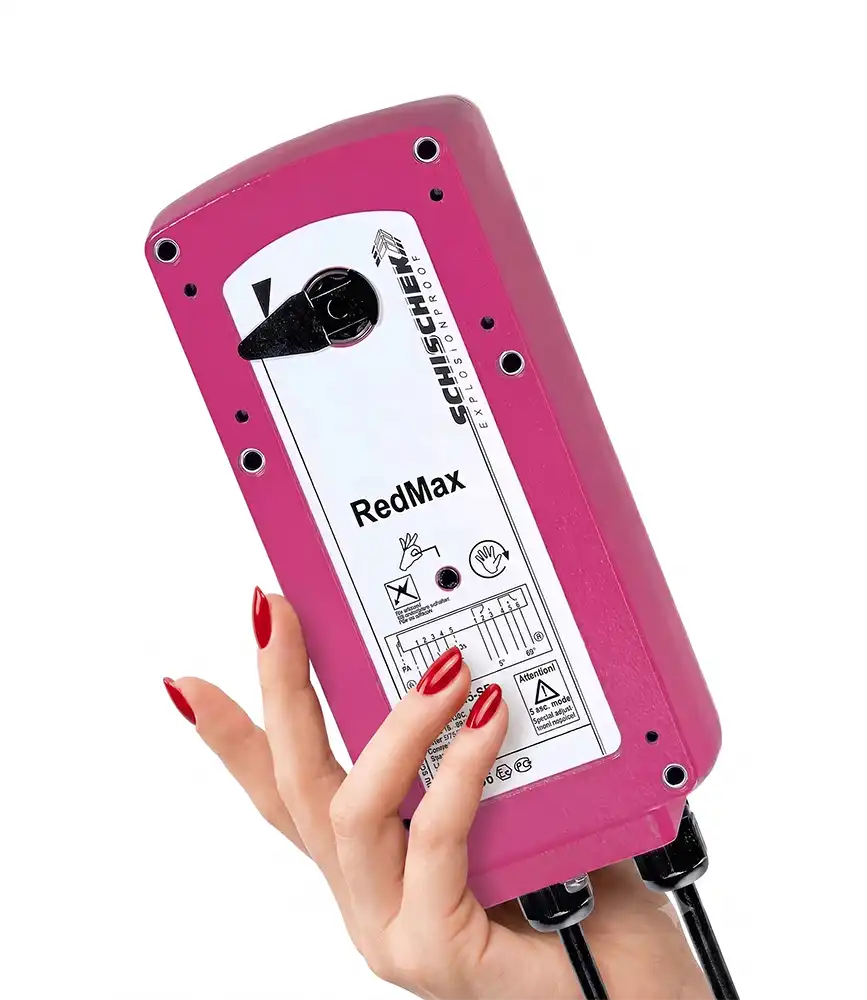

| RedMax | Division 2 | 45 to 1,350 in-lbs | Quarter turn, dampers and valves |
| InMax | Ordinary locations | 45 to 1,350 in-lbs | Quarter turn, dampers and valves |
| ExRun | Division 1 | 110 to 670 lbf | Linear, 2 and 3 way valves |
| RedRun | Division 2 | 110 to 670 lbf | Linear, 2 and 3 way valves |
| InRun | Ordinary locations | 110 to 670 lbf | Linear, 2 and 3 way valves |
Send us your area classification and we will confirm the model and the full part number.
How to Read the Model Number
The letters after the torque tell you what the actuator does. The same code runs across ExMax, RedMax and InMax.
| Suffix | What it adds |
|---|---|
| No suffix | On-off or 3-position control, no spring return |
| S | Two limit switches at 5 and 85 degrees |
| Y | Modulating control, 0 to 10 VDC or 4 to 20 mA, with feedback |
| F | Spring return, about 3 or 10 seconds |
| SF | Spring return plus limit switches |
| YF | Spring return plus modulating control |
| BF | Spring return plus a connector for the ExPro-TT temperature trigger, for fire and smoke dampers |
| F1 | Fast spring return, 1 second or less |
An A at the end is the North American version. A full part number reads like RedMax-135-SF-A.
Other Schischek Products
Schischek makes more than actuators. The same Ex, Red and In tiers apply across the line.
| Family | What it is |
|---|---|
| ExCos, RedCos, InCos | Temperature, humidity and differential pressure transmitters |
| ExPro, RedPro, InPro | Sensors and probes, including the ExPro-TT temperature trigger for fire dampers |
| ExBin, RedBin | Thermostats and hygrostats |
| ExReg | Control units for VAV, pressure, temperature and humidity |
| ExBox, RedBox, InBox | Terminal boxes for wiring inside the classified area |
| ExSwitch, RedSwitch, InSwitch | External adjustable limit switches |
We supply the full Schischek line. Tell us what you are controlling and we will put the package together.
