Industrial FRP Duct and Ductwork
We supply industrial FRP duct and ductwork for air that corrodes metal. Tell us the chemistry, temperature, and airflow, and we match the duct and resin to it.
We quote the duct with the fan, the damper, and the louver that go with it. One order, one contact, from quote to delivery.
Our offices are in Houston and Dallas-Fort Worth, serving Texas and the Gulf Coast, and we ship nationwide.
Have questions? Need quote?
FRP Duct Sizes and Configurations
We supply FRP duct in round, rectangular, oval, and square. The table shows the size of each one and where it fits.
| Configuration | Size range | Where it fits |
|---|---|---|
| Round duct | 2″ to 42″ diameter | Most process exhaust and fume runs |
| Rectangular duct | 12″ to 96″ wide and deep | Large plenums and hood connections |
| Oval and square duct | 2″ to 42″ | Tight ceilings and retrofit runs |
| Double wall duct | Matched to the inner duct | Underground and insulated runs |
| Fittings, hoods, and flanges | Matched to the duct | Elbows, tees, reducers, bolted joints |
| FRP dampers and blast gates | Matched to the duct | Isolation and volume control in the run |
| Duct supports | Matched to the run | Long horizontal and vertical runs |
All of it is built to the SMACNA Thermoset FRP Duct Construction Manual. That standard covers negative 30 to positive 30 inches W.G. and service to 180°F. Hand lay-up, spray-up, and filament wound are all available, picked by the pressure and the diameter.
Resin and Veil by Service
The resin and the veil carry the chemical load. This is how they match to the air stream.
| Service | Resin | Veil | Corrosion barrier |
|---|---|---|---|
| Mild. General ventilation, light condensate | Isophthalic polyester | C-glass | 100 mils |
| Moderate. Acid fume, most bases | Vinyl ester | C-glass | 100 to 160 mils |
| Severe. Strong oxidizers, solvents, high concentration | Epoxy vinyl ester | C-glass | 160 to 250 mils |
| Caustic | Vinyl ester | E-CR glass | Set by concentration |
| Flammable vapor, static dissipation | Vinyl ester | Carbon veil | Set by chemistry |
The veil is a resin-rich layer 0.030 inches thick on the wetted face. It keeps the acid off the glass fiber. Every laminate carries a Class 1 flame spread rating of 25 or less under ASTM E-84.
Where FRP Duct Replaces Metal

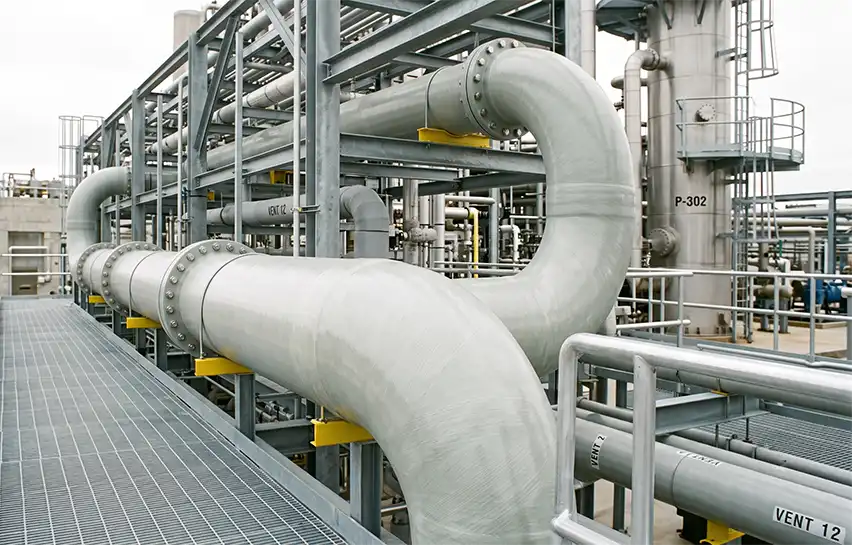

We ship FRP duct to wastewater treatment, chemical processing, semiconductor, and laboratory exhaust systems. The common factor is air that would rust steel.
The duct is one part of the run. We supply the FRP fans that pull the air and the FRP louvers at the wall.
